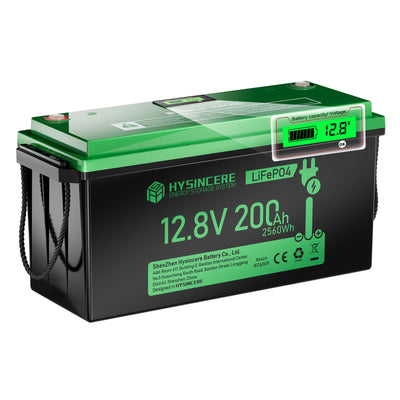

Hysincere Power 12V 200Ah Plus LiFePO4 Deep Cycle Battery
Ultra-Light with Double Energy Density

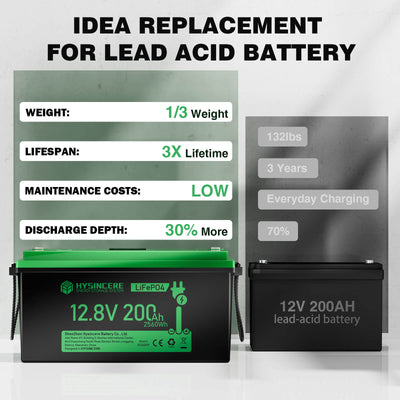

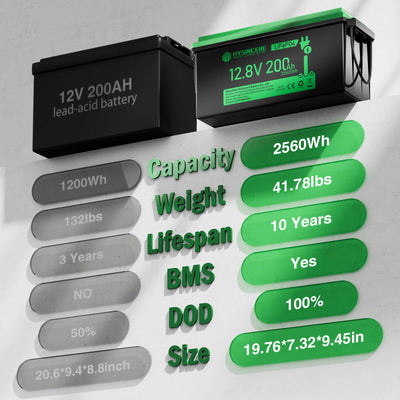

Weighs only 41.78 lbs with 2560Wh output, delivering 2x more usable energy than lead-acid batteries at just 1/3 the weight.

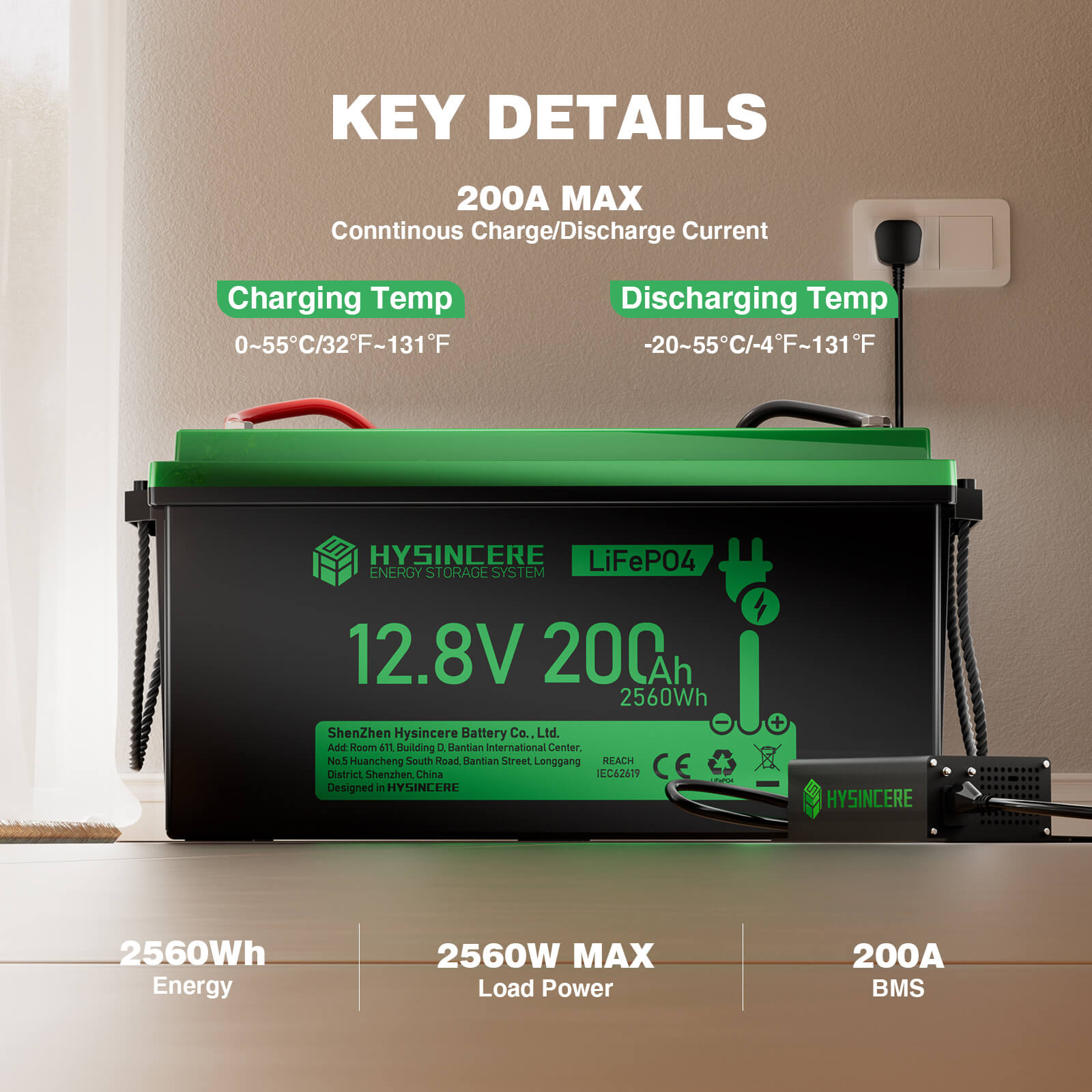

• Advanced 200A BMS
Built-in smart BMS supports 200A continuous and 400A peak (3s) discharge, with full protection from overcharge, overdischarge, overcurrent, overheating, and short-circuit.
• 10-Year Lifespan & Ultra-Deep Cycles
The 12V LiFePO4 battery is built with premium A+ grade LiFePO4 cells that deliver higher energy density and exceptional stability. Engineered for long-lasting performance, it offers over 4,000 charge cycles at 100% depth of discharge (DOD), up to 6,000 cycles at 80% DOD, and an impressive 15,000 cycles at 60% DOD.
• Supports 4S4P Connection

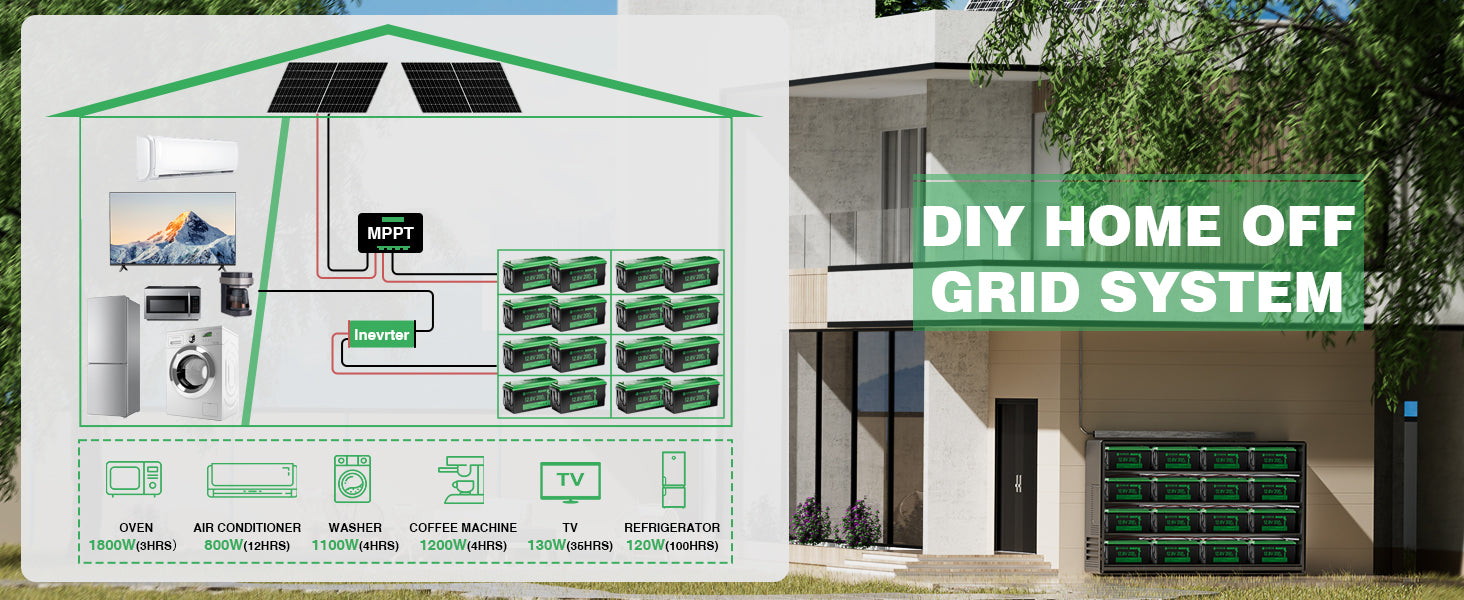

DIY your energy system by connecting 16 12V 200Ah lifepo4 batteries wired in 4P4S, expanded 2.56kWh to a maximum of 40.96kWh for meeting your power needs for your RV/home/work.

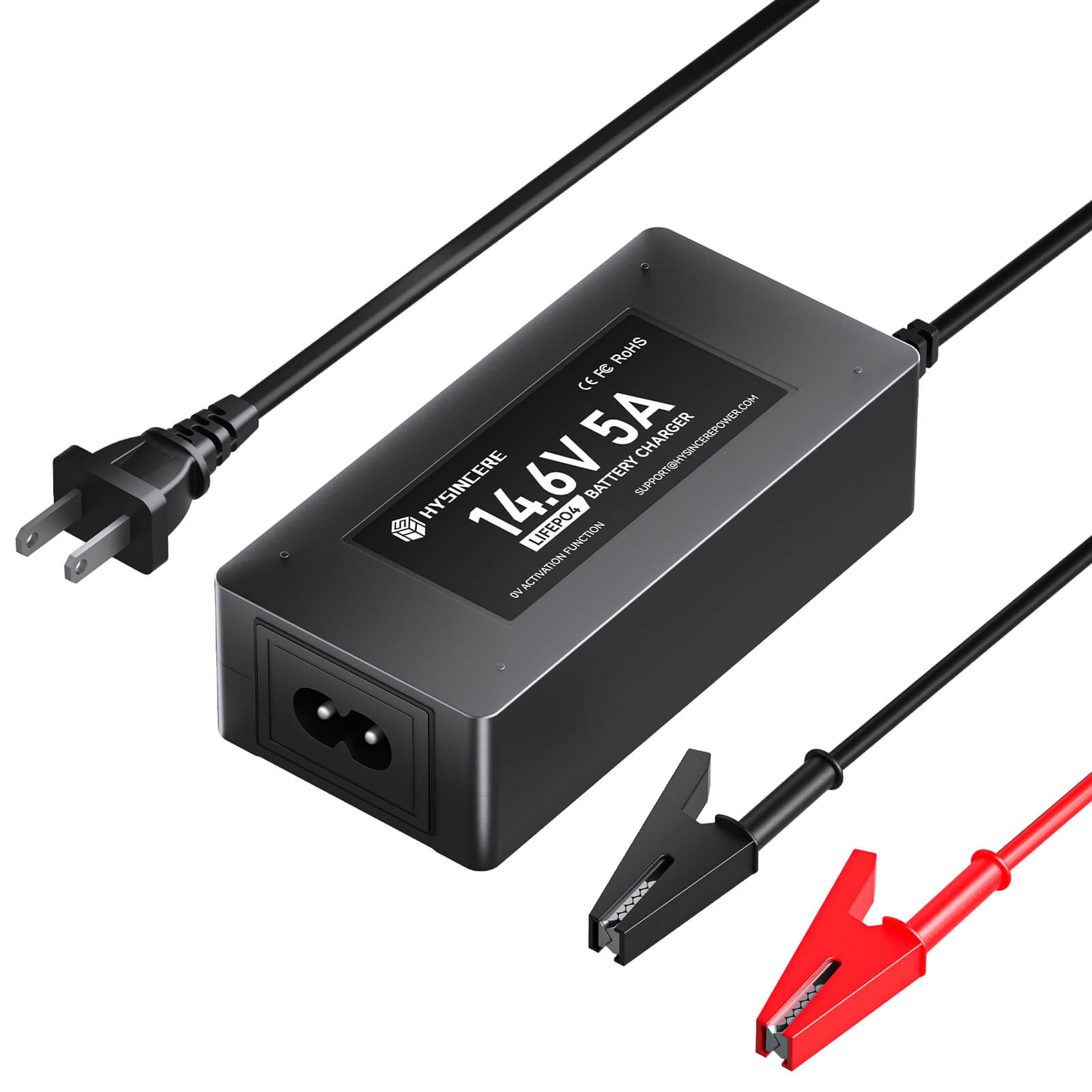

• Charger Recommendation
To ensure safe and efficient charging, please use a LiFePO4-compatible charger that supports constant current (CC) and constant voltage (CV) modes. The recommended charging current is between 0.2C and 0.5C of the battery’s rated capacity, with 0.2C being the optimal choice for maximum battery longevity. When fully charged, the battery typically reaches 14.6V, but it is normal for the voltage to stabilize around 13.4V after resting. Always follow these guidelines to maintain battery health and performance.
Popular upgrades
In stock! Ships within 1-2 business days.
30-day risk-free trial
5-Year Warranty
Complimentary shipping & returns
Hysincere Power 12V 200Ah Plus LiFePO4 Deep Cycle Battery
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
12V 200Ah Deep Cycle LiFePO4 Battery
A high-capacity 12V 200Ah LiFePO4 deep-cycle battery designed for RV, marine, solar and backup applications, offering stable power and compact form factor.

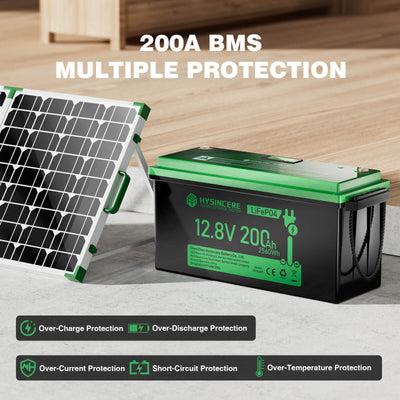

Built-In 200A BMS Provides 5 Protections
Integrated 200A Battery Management System provides over-current, over-charge, over-discharge, short-circuit and over-temperature protection for safer operation.

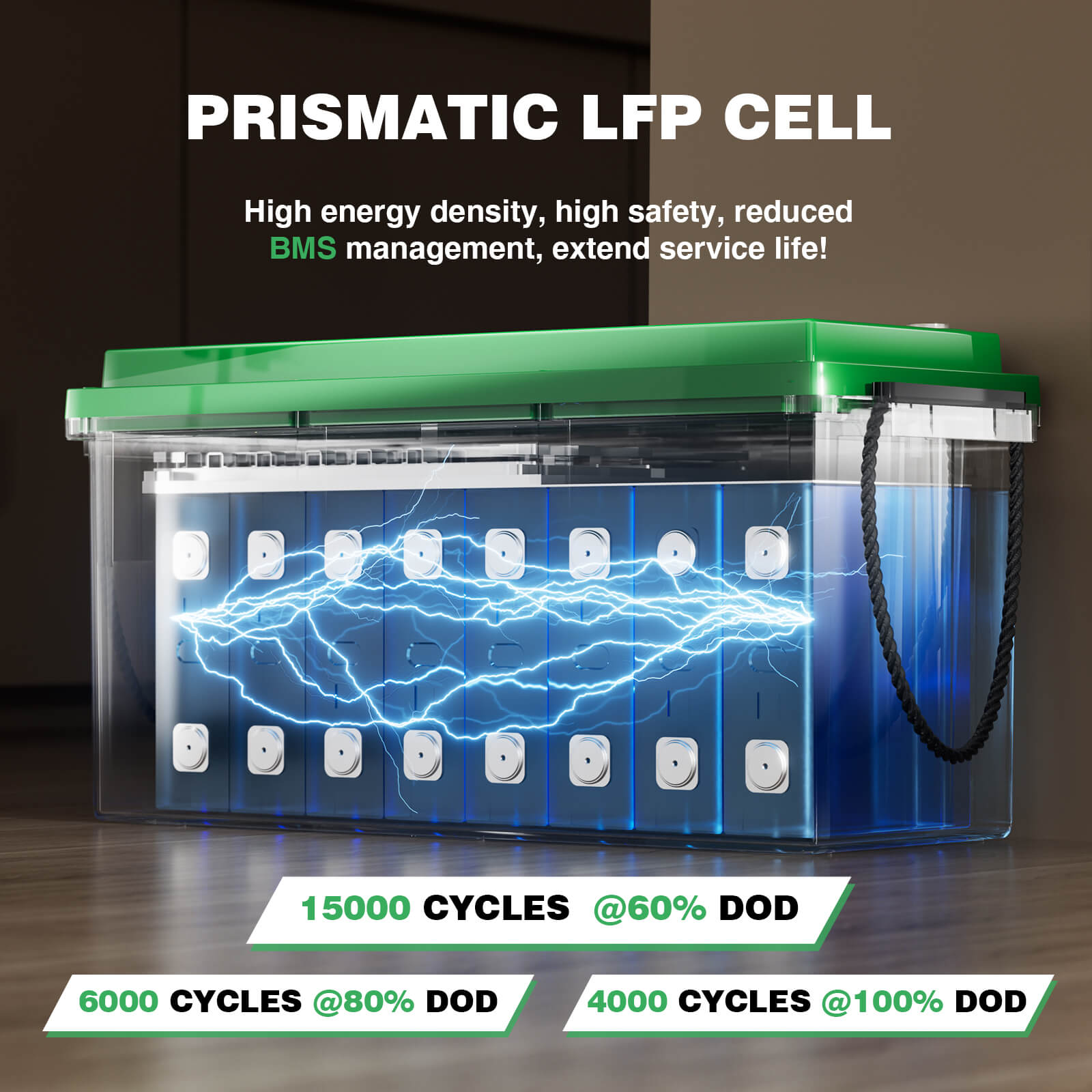

Prismatic LFP Cells — Long Cycle Life
High-quality prismatic LFP cells deliver long cycle life (up to 15,000 cycles at ~60% DOD) and steady power output for extended, reliable use.

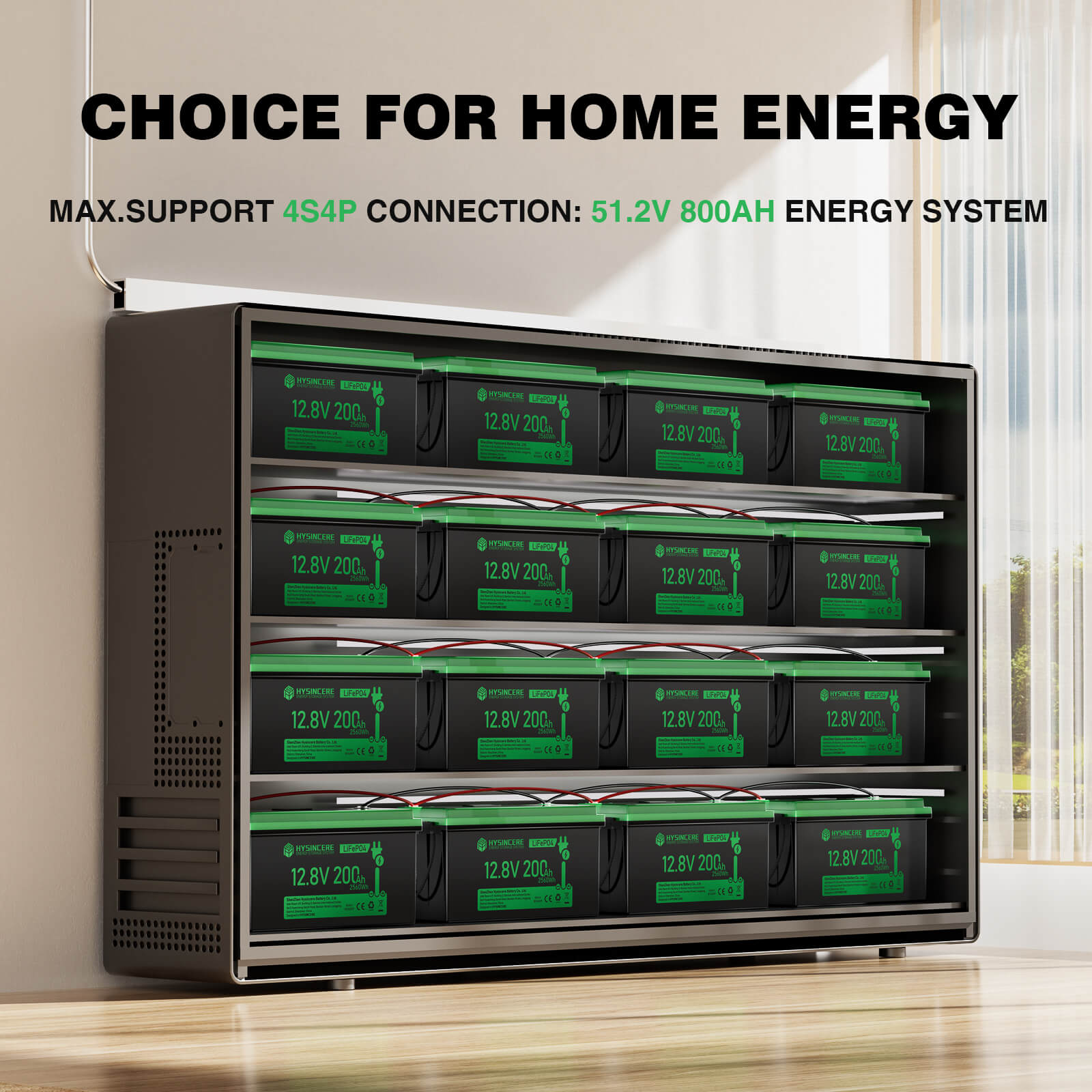

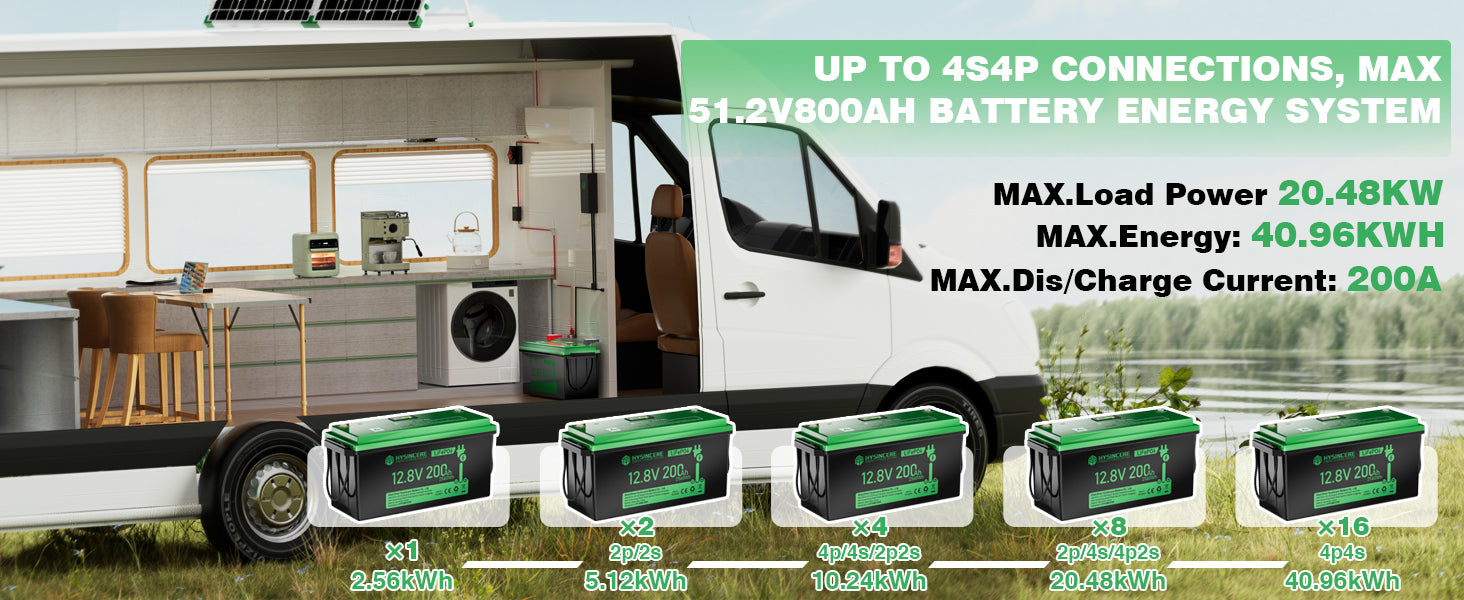

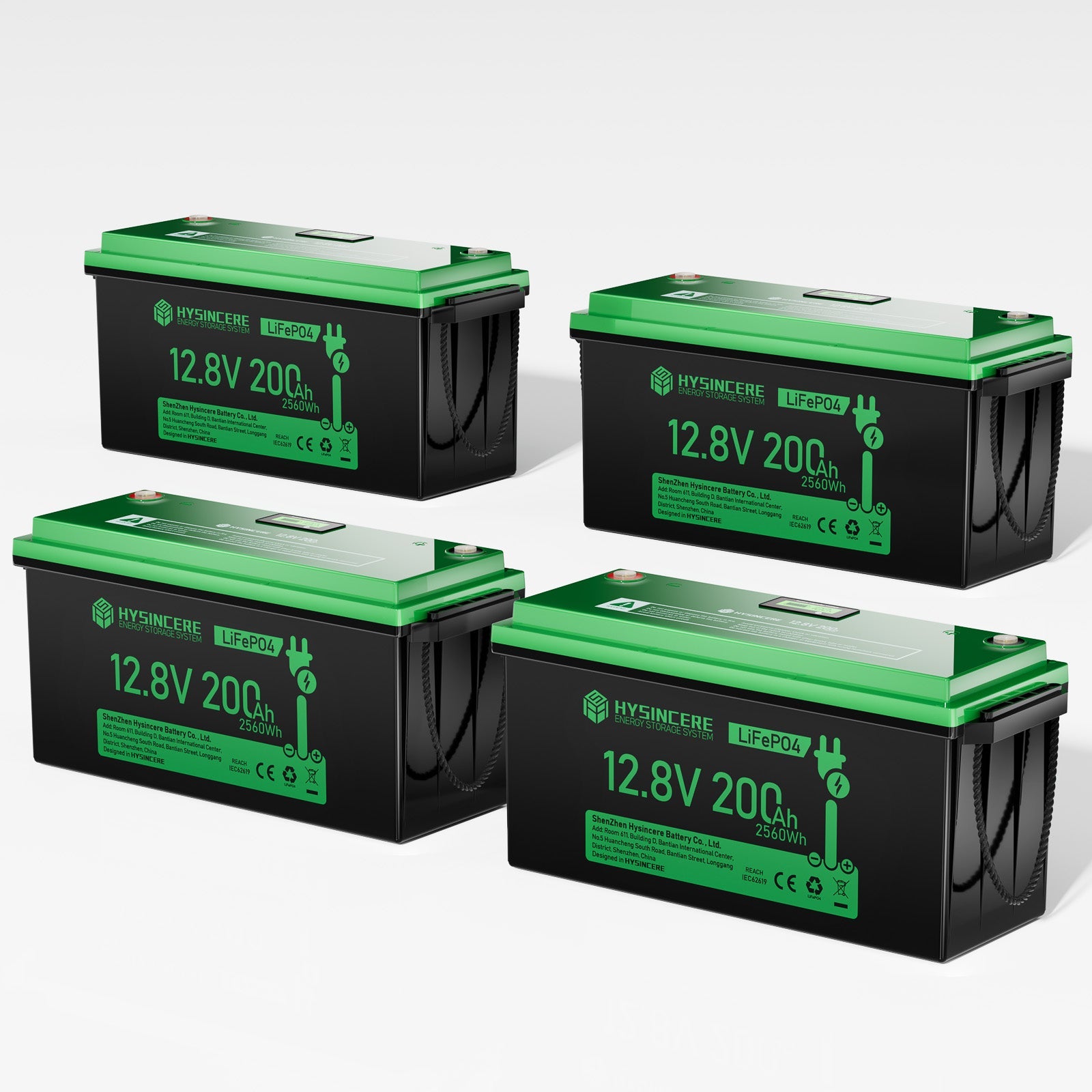

Scalable 4S4P System — Powerful Capacity Options
Supports scalable 4S4P configurations up to 51.2V/800Ah (system energy up to ~40.96 kWh) with high charge/discharge capability for larger off-grid systems.
All-in-One Power Solution
Supports home backup, RV, marine, solar, and trolling motor applications. Works with LiFePO4 chargers, inverters, MPPT controllers, and DC-DC systems for flexible energy setups.

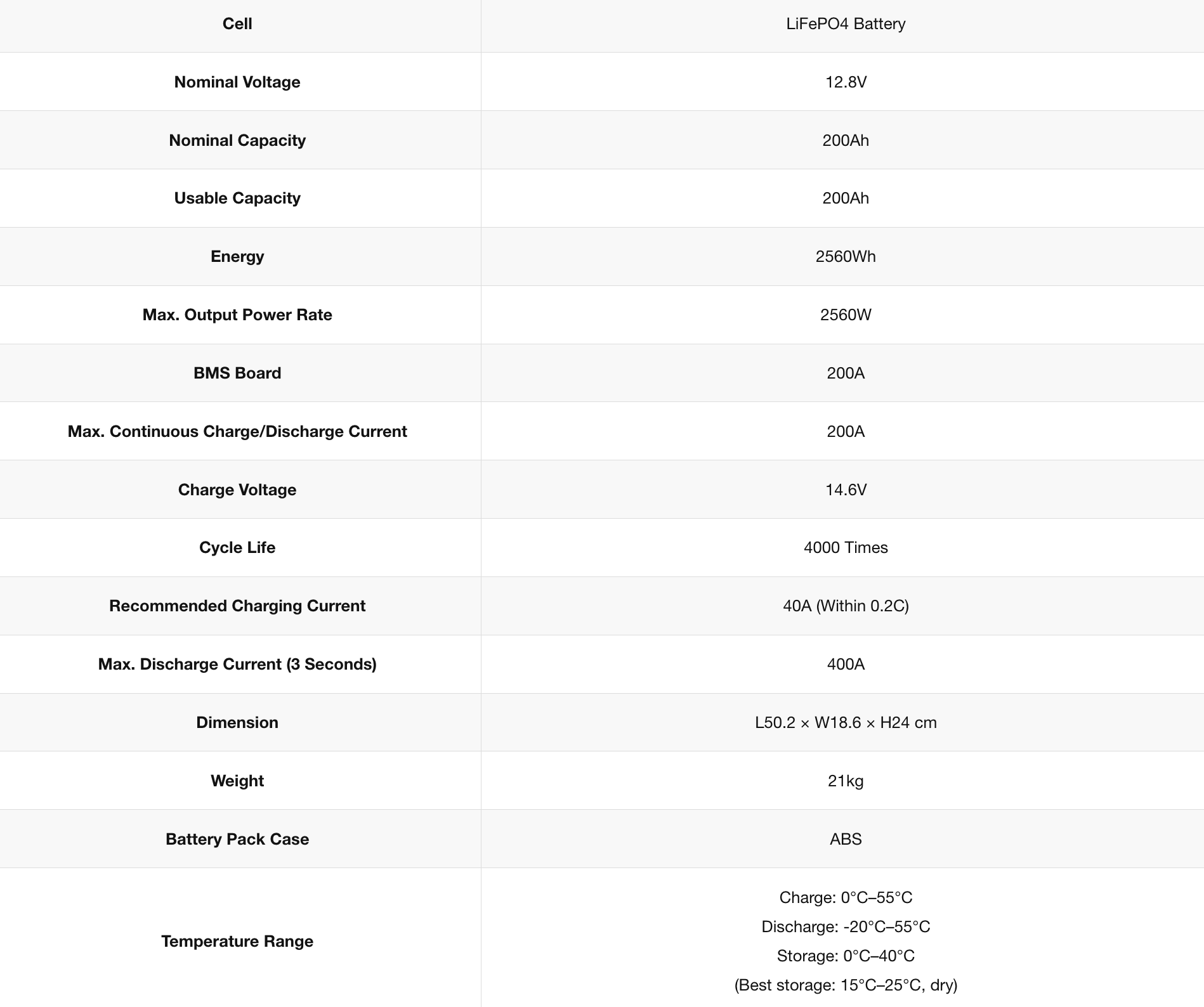

Specs
FAQs
What should you do when you receive a new battery?
When you receive your battery, it may have a low state of charge (SOC) due to transportation and storage. To ensure optimal performance, charge the battery immediately to avoid over-discharge.
Batteries with Bluetooth functionality may arrive in an off state, showing a terminal voltage between 3V and 5V, and you won't be able to connect them to your phone. This is because they are shipped powered off, similar to mobile phones, to minimize self-discharge and extend the battery's lifespan.
There are 2 ways to solve the problem: using an AC-DC lithium battery charger or an MPPT solar charge controller to charge it for 3 to 10 seconds, then the battery can be used normally.
If you plan to store the battery for a long time, charge it to a SOC of 50% and perform maintenance every three months. This will help preserve its functionality and performance.
Does the product come with a warranty? How long is the warranty period?
Hysincere provides a 5-year warranty for every lithium battery, ensuring you have no after-sales worries. Additionally, if you encounter any issues during use, feel free to contact us. Our professional team will respond promptly and assist you in resolving your concerns.
Contact Email: support@hysincerepower.com
Can I connect Hysincere lithium batteries in series or parallel?
Hysincere batteries support series and parallel connections for the same model.
If your goal is to increase the battery system voltage, we recommend connecting the batteries in series.
If your goal is to increase the battery system capacity, we recommend connecting the batteries in parallel.
Important Notes:
Series and parallel connections are only supported for batteries of the same brand and model. Batteries from different brands or models may have different BMS settings, which can prevent the battery system from functioning properly.
If the batteries you plan to connect have been used for significantly different durations, they must be balanced first. Ensure all batteries have the same voltage level before proceeding with the series or parallel connection.
If you are unfamiliar with the connection process or have any other questions, feel free to contact our customer service team.
📧 Email: support@hysincerepower.com
How to Charge Hysincere Lithium Batteries?
Hysincere Lithium Batteries have different charging requirements compared to lead-acid batteries, so we recommend using a Hysincere Lithium Battery charger.

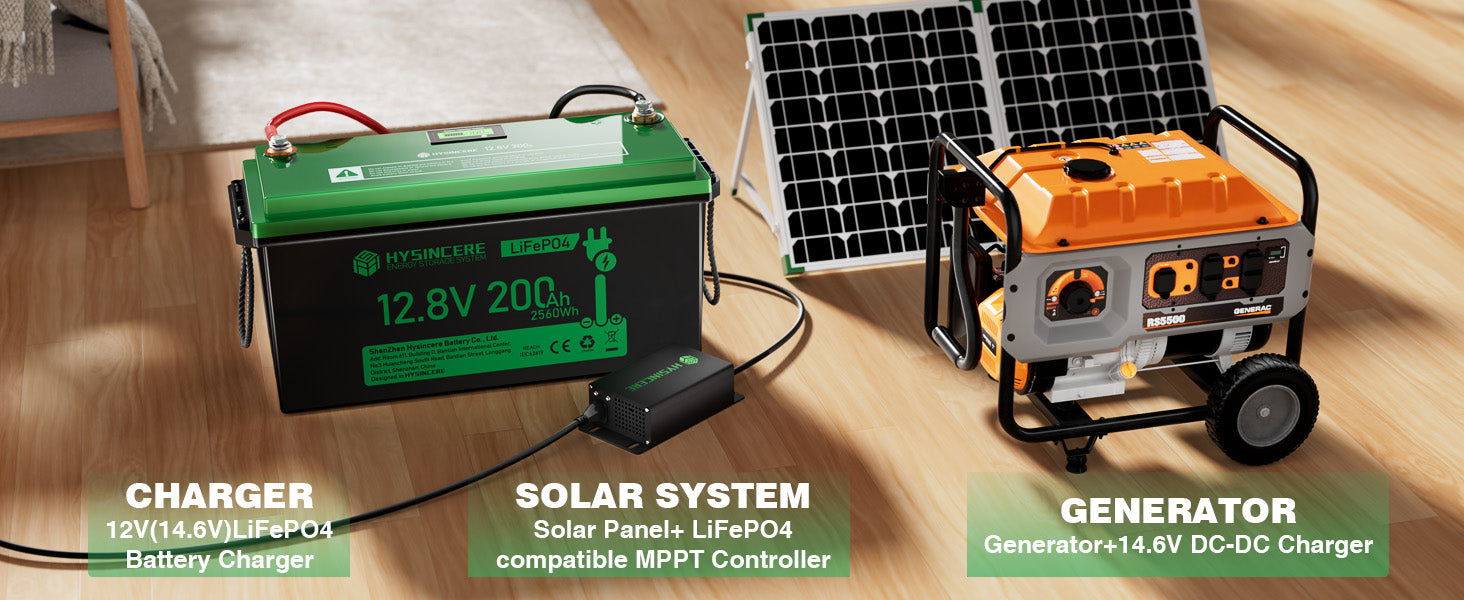

Here are the charging options for Hysincere lithium RV batteries:
- Lithium Battery Charger: Choose a charger with the correct voltage to safely charge the battery.
- Solar Panels: Always connect a solar charge controller when using solar panels to ensure safe charging.
- Alternator/Generator:
DC Output: If your alternator or generator provides DC output, you'll need a DC-to-DC charger to connect the battery.
AC Output: If it provides AC output, use a compatible battery charger as specified in the product manual to safely connect the battery and generator.
Can Hysincere Lithium batteries be paired with inverters?
Yes, Hysincere Lithium Batteries can be paired with inverters to convert the DC power stored in the battery into AC power, which is necessary for operating most household appliances.
Hysincere pure sine wave inverters are particularly beneficial for powering devices such as air conditioners, microwaves, or televisions. It’s crucial to select an inverter that is compatible with deep cycle lithium batteries to ensure optimal performance.
Combining lithium batteries with a suitable inverter guarantees a reliable power supply for your appliances during your travels.
