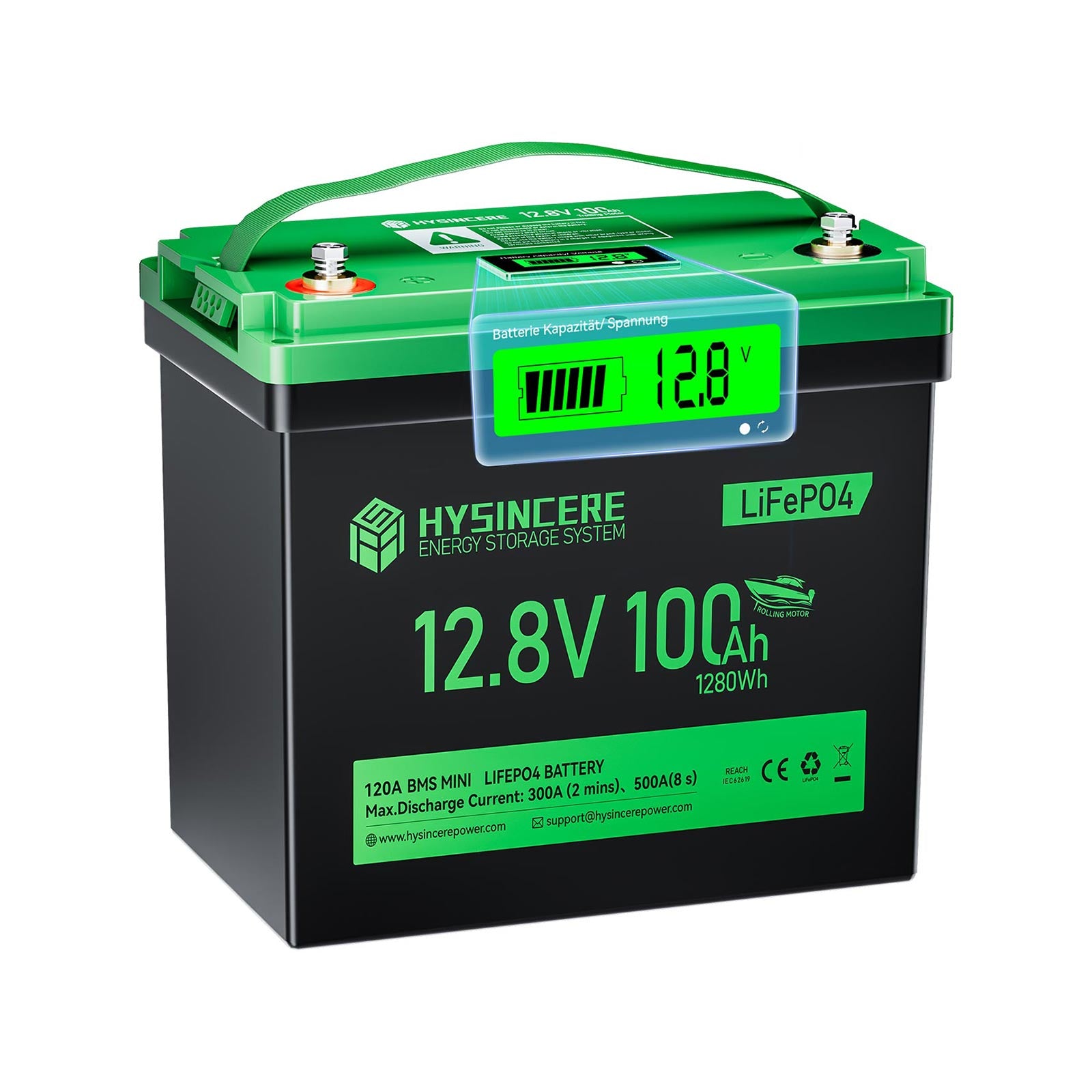

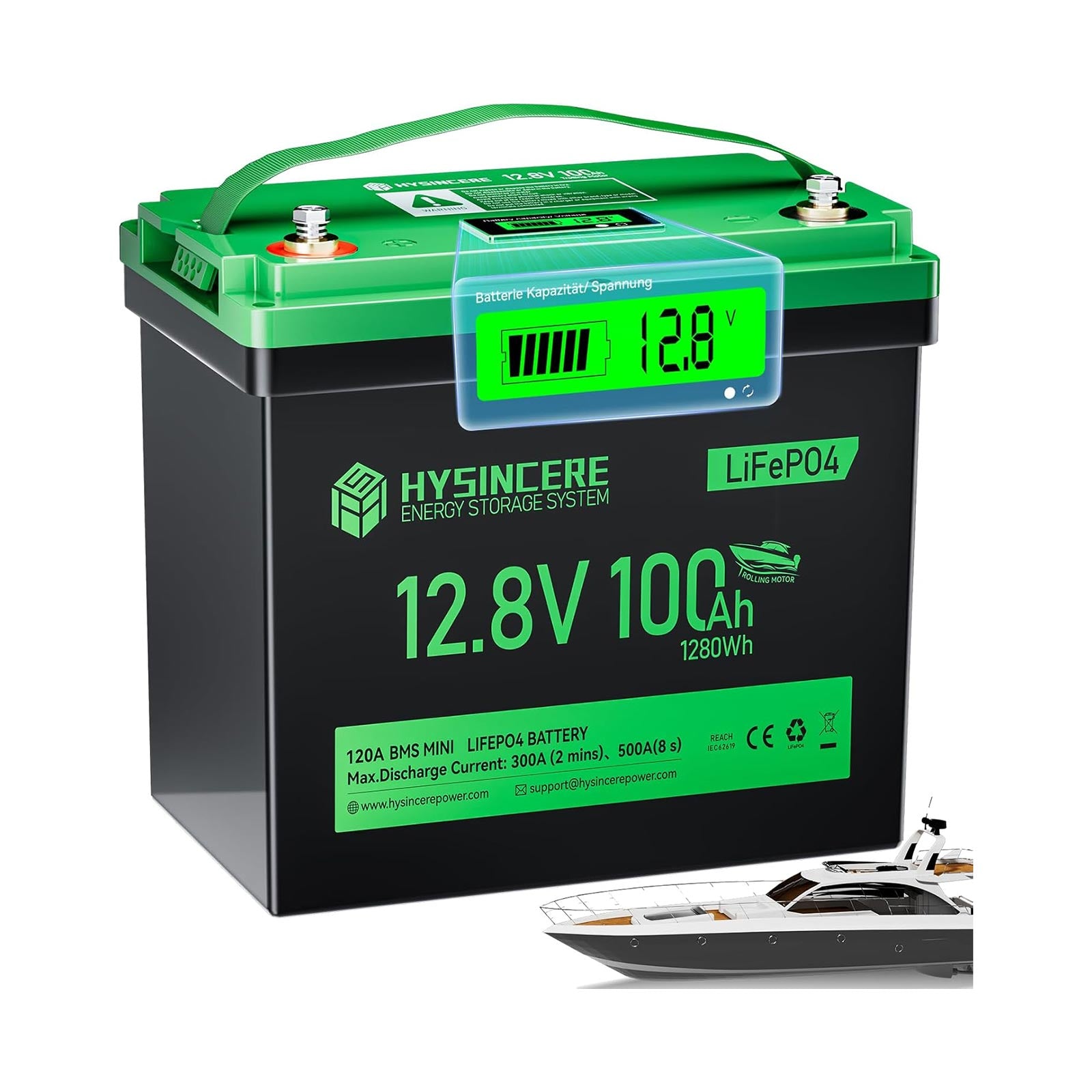

Hysincere Power 12V 100Ah Trolling Motor Mini LiFePO4 Battery

Power your trolling motor with confidence and fish without limits.

• 12V 100Ah LiFePO4 Battery with 120A BMS

Built-in 120A BMS provides protection against overcharge, over-discharge, over-current, short circuit, and high temperature. Supports 120A continuous discharge, 300A for 2 minutes, and 500A peak for 8 seconds. Ensures stable power for your trolling motor during extended use.

• Compact and Lightweight Design

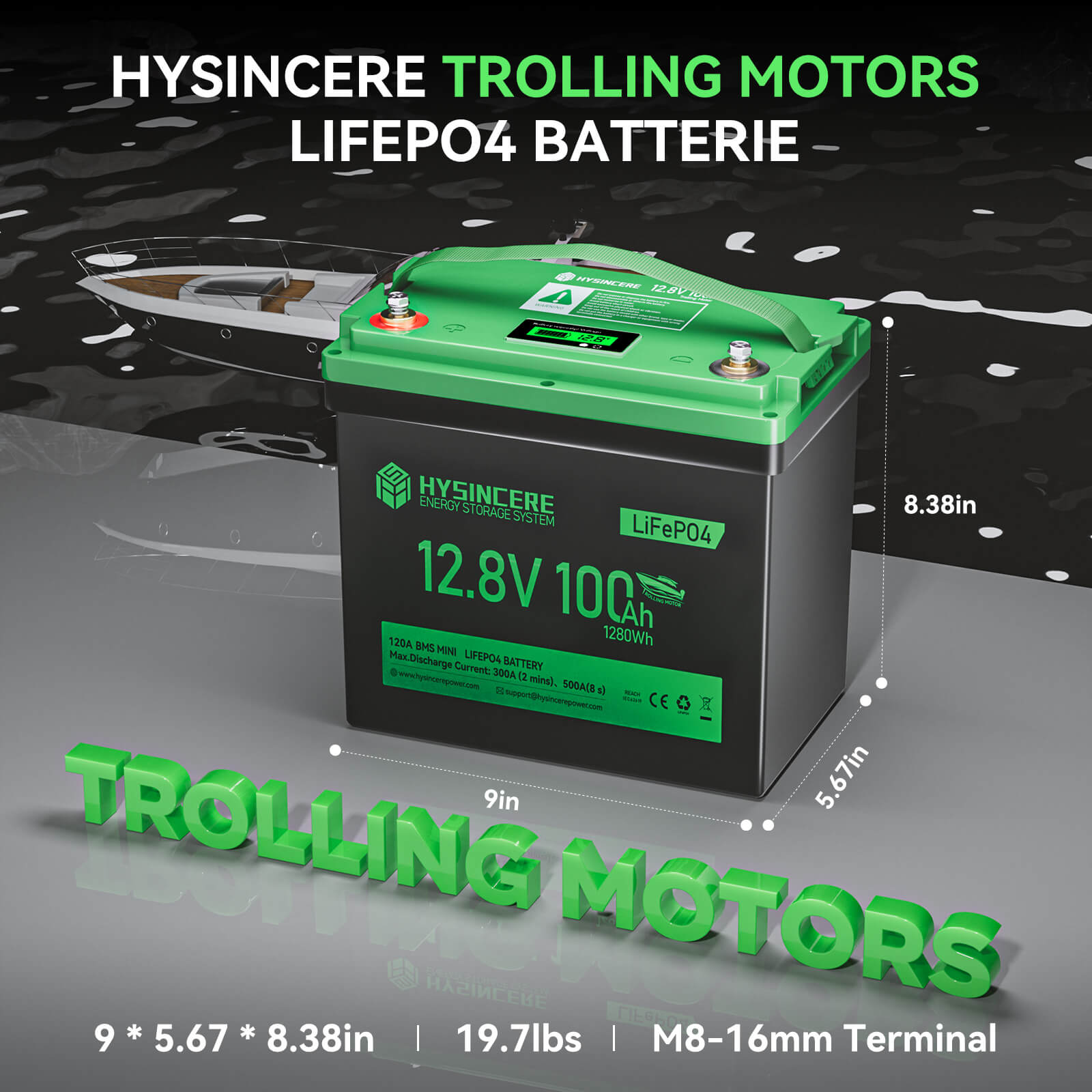

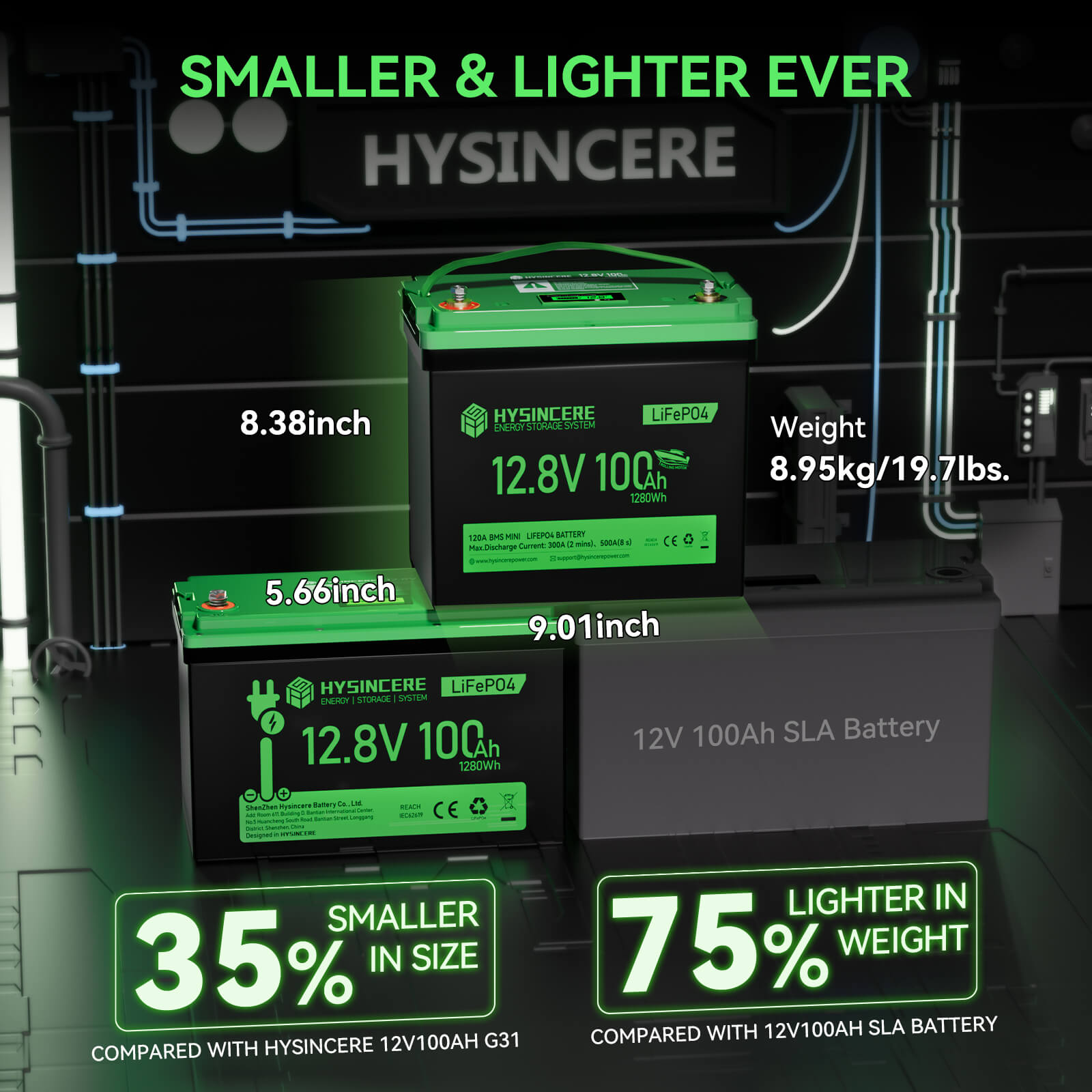

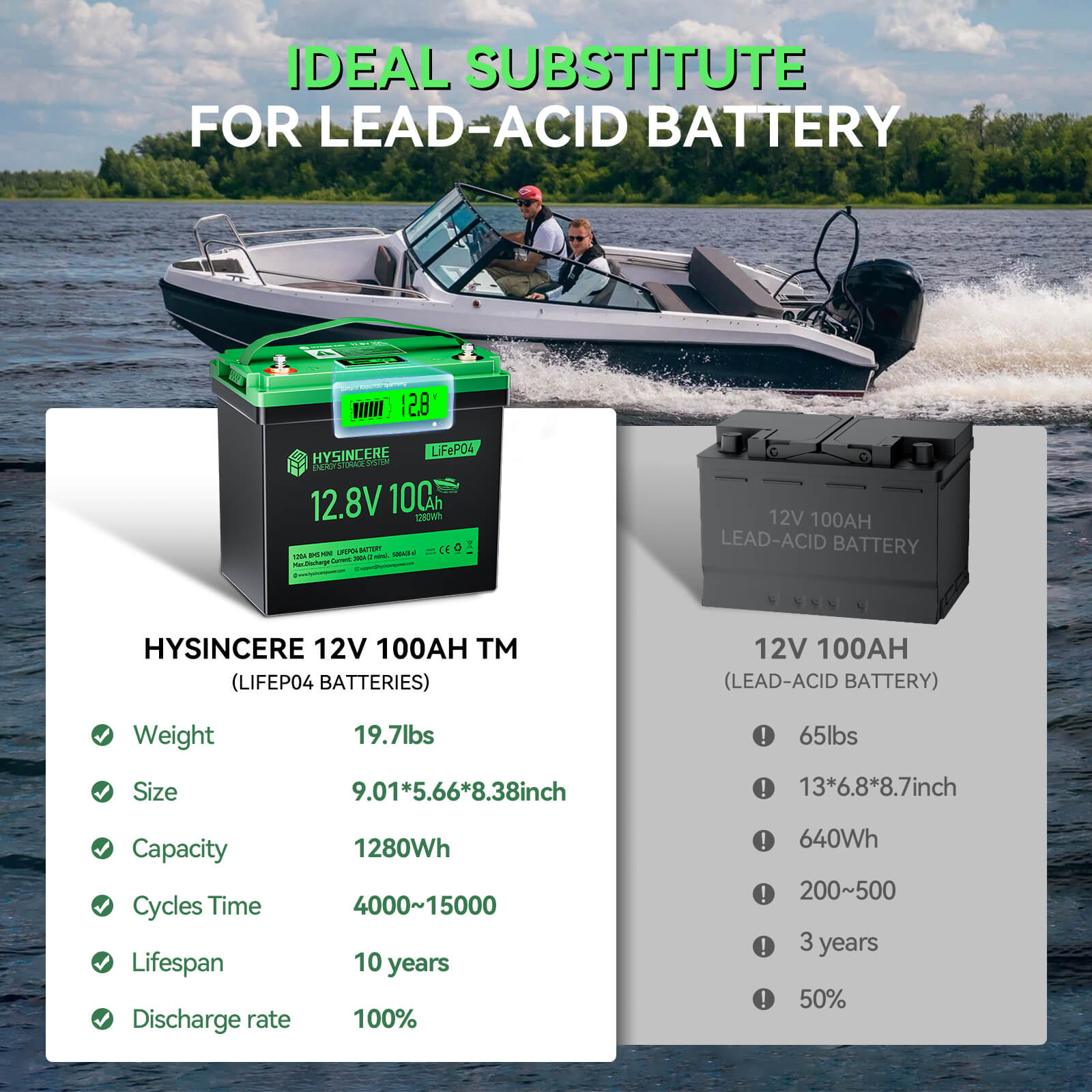

This is one of the smallest 12V 100Ah LiFePO4 batteries for trolling motors. At just 9 x 5.67 x 8.38 inches and 19.73 lbs, it is 35 percent smaller than Group 31 batteries and 75 percent lighter than lead-acid batteries. Perfect for kayaks, RVs, campers, and space-limited installations.

• Clear LED Display for Battery Status

It effectively shows the voltage and capacity percentage, please refer to the voltage value for the specific power. Due to the characteristics of lithium iron phosphate battery, please test it after half an hour of rest after charging.

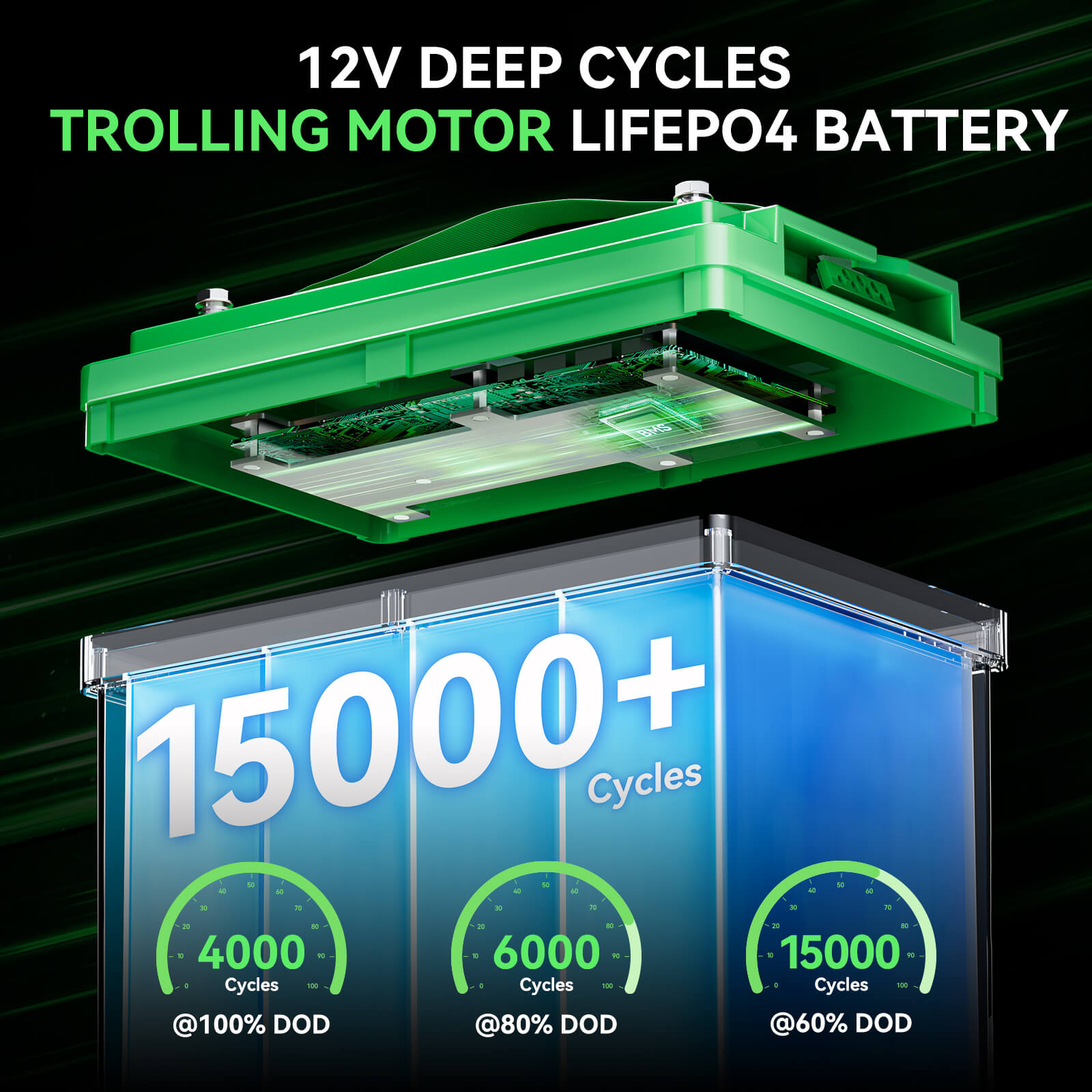

• High-Performance A+ Grade Lithium Cells

Made with A+ grade LiFePO4 cells offering over 4000 cycles at 100 percent depth of discharge. Delivers long-lasting energy with stable performance and a daily use cost of just 0.05 dollars.

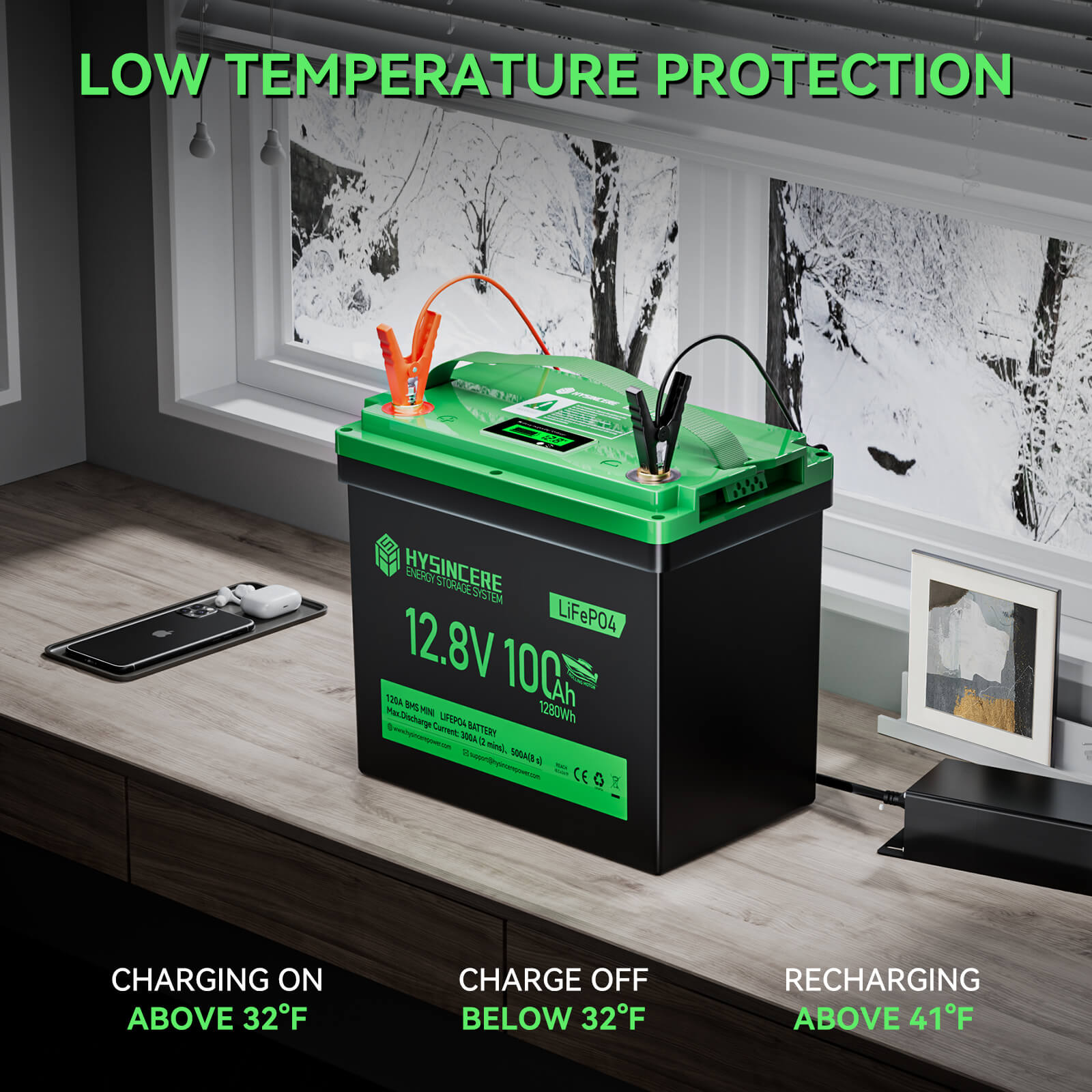

• Low Temperature Charging Protection

Equipped with a temperature sensor that prevents charging below 32°F and resumes above 41°F. Suitable for cold climates and reliable use in RVs, solar systems, campervans, and marine applications.

• Support 4S4P Connection

Supports up to 4S4P configuration to build a 20.48kWh energy system. Ideal for 12V 30 to 70 lb trolling motors, off-grid systems, home energy storage, and solar setups. Not recommended for golf carts or engine starting.

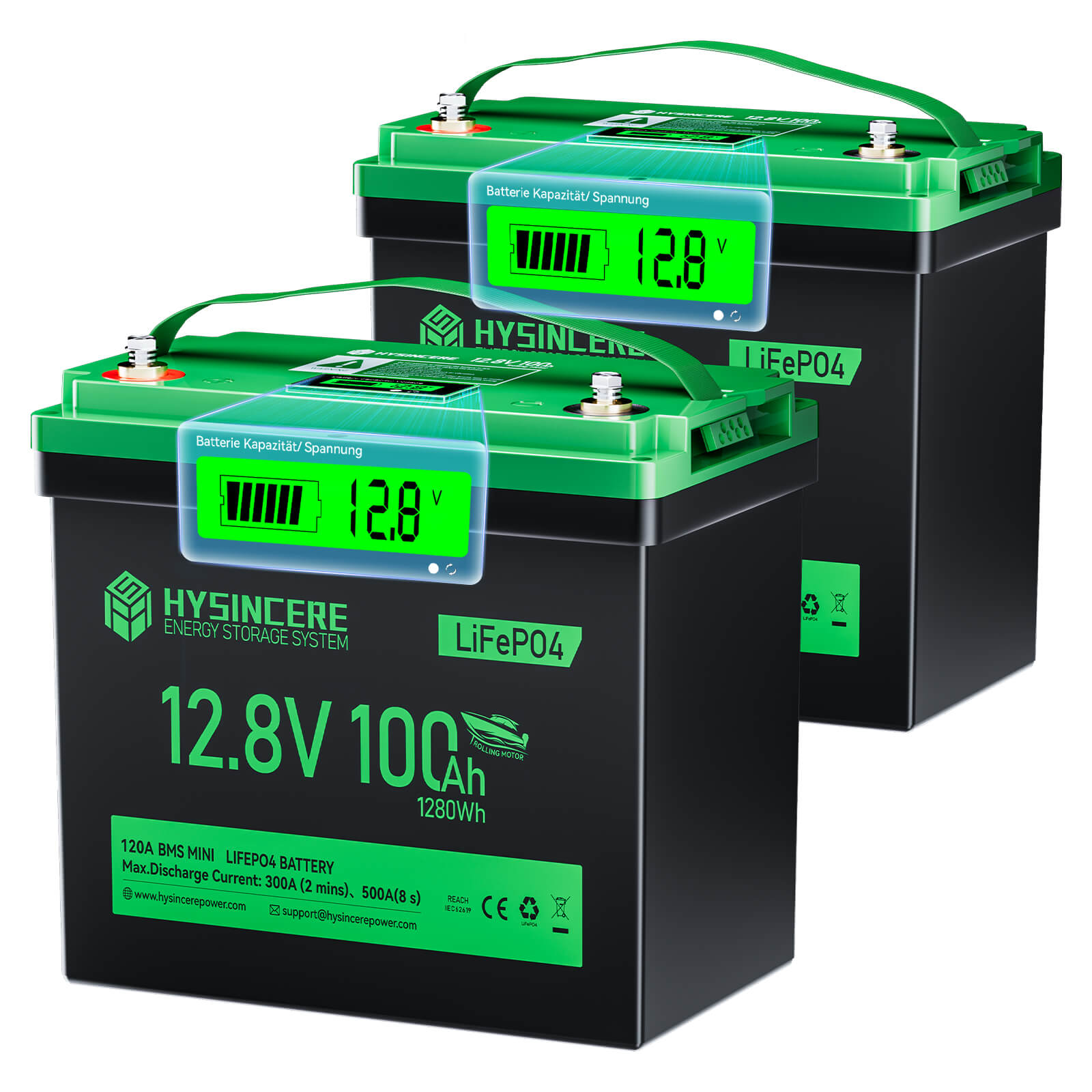

Pack 1 Pack 2 Pack

$165.99 USD

$165.99 USD ~~$199.99 USD~~

Free Shipping
5 Years Warranty
Secure Payment

12 Years Energy Expert
50+ Patents Certification
20000㎡ Modern Factory

Hysincere Power 12V 100Ah Trolling Motor Mini LiFePO4 Battery

$165.99 USD

Features Specs FAQ Reviews

Features

Specs

Cell	LiFePO4 Battery
Nominal Voltage	12.8V
Nominal Capacity	100Ah
Usable Capacity	100Ah
Energy	1280Wh
Max. Output Power Rate	1536W
Battery Management System (BMS)	120A
Max. Continuous Charge/Discharge Current	120A
Charge Voltage	14.6V
Cycle Life	4000 Times

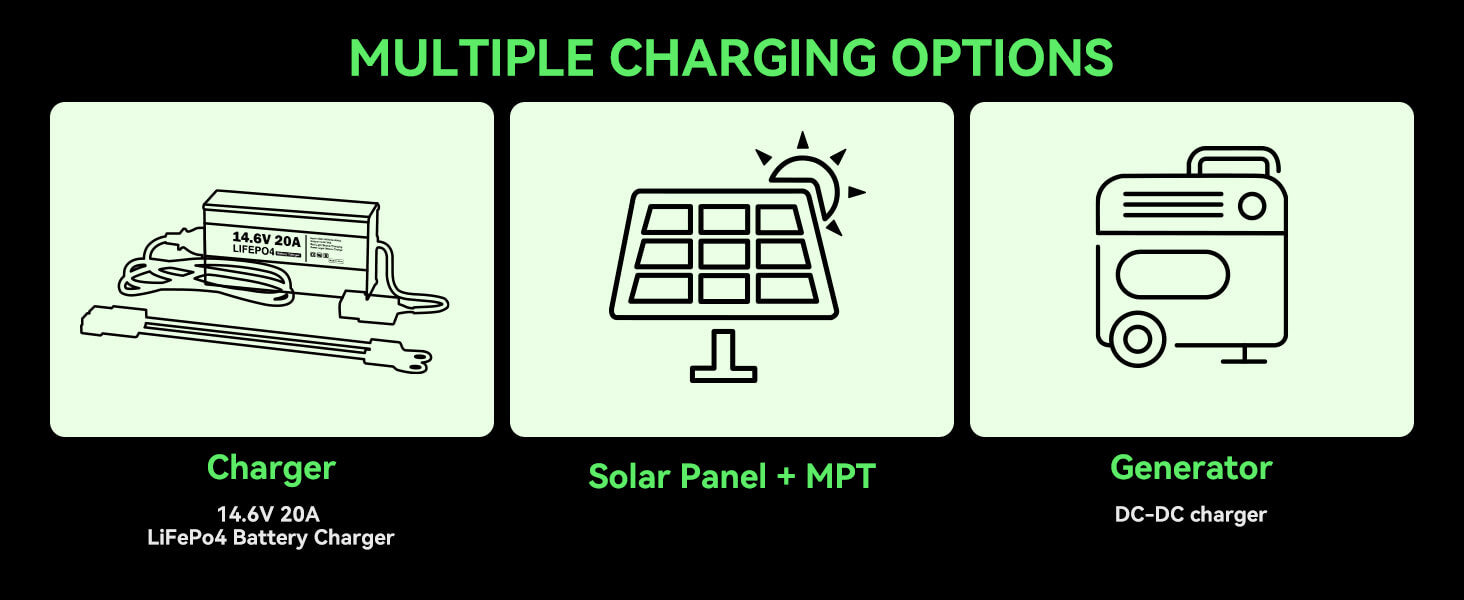

Recommend Charging Current	20A (Within 0.2C)
Max. Discharge Current	300A (2 mins), 500A (8s)
Dimension	L22.9 × W14.4 × H21.3 cm
Weight	8.95kg
Battery Pack Case	ABS
Temperature Range	Charge: 0℃–60℃ Discharge: -20℃–60℃ Storage: 0℃–40℃ (Best storage: 15℃–25℃, dry)
BMS Features	1. Low temperature protection, automatic protection & recovery from over-discharge 2. Built-in TVS to prevent voltage spikes & surges
Terminal Size	M8 × 1mm Metric Thread
Post Bolts	M8 × 1mm Metric Thread × 12mm Bolt Length

FAQ

What trolling motors is this battery compatible with?

This 12V 100Ah LiFePO4 battery is compatible with 30–70 lb thrust trolling motors, including popular models from Minn Kota, Newport Vessels, and more. It supports a continuous discharge current of 120A, a peak discharge current of 300A for 2 minutes, and 500A for 8 seconds, ensuring reliable performance during demanding use.

How long can the battery run on a single charge?

Runtime depends on your motor and load. With a 55 lb motor, it typically lasts 4 to 8 hours under normal use.

Can I connect multiple batteries together?

Yes, this battery supports up to 4 in series and 4 in parallel (4S4P) to create higher voltage or larger capacity systems.

Does the battery have low-temperature protection?

Yes, the BMS includes low-temp protection. Charging stops below 32℉ and resumes automatically when the temperature rises above 41℉.

Is there a warranty for this battery?

Yes, all Hysincere Power batteries come with a 5-year warranty. You can register your product for warranty coverage at: hysincerepower.com/pages/register-warranty
