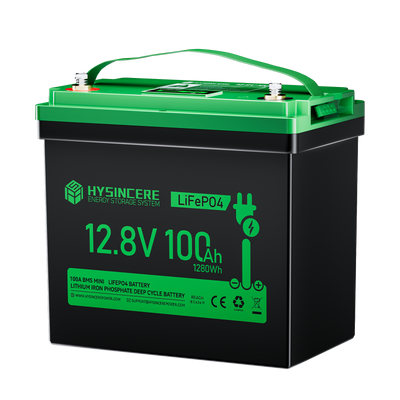

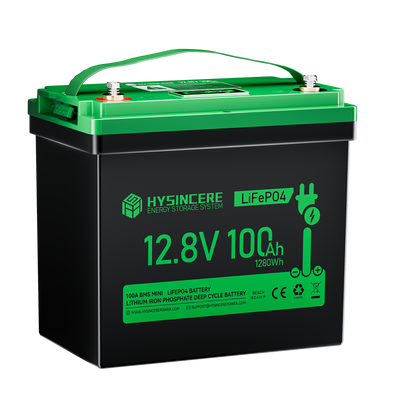

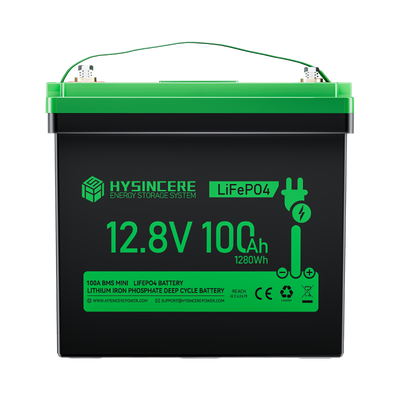

Hysincere Power 12V 100Ah Group 24 LiFePO4 Battery

Eco-friendly energy storage you can trust, with on-screen status updates.

• Idea for Replacing AGM Batteries

The Hysincere 12V 100Ah mini LiFePO4 battery offers one-third the weight and twice the usable energy of a 12V 100Ah lead-acid battery. Weighing only 19.73 lbs and delivering up to 1,280Wh, it provides full usable capacity, unlike AGM batteries that offer only 50% depth of discharge and around 50Ah of usable power.

• True Deep Cycle 12V LiFePO4 Battery

Hysincere lithium iron phosphate battery delivers 4000+ cycles at 100% DOD, 6000 cycles at 80% DOD, and up to 15000 cycles at 60% DOD. Built with A-grade LiFePO4 cells, it ensures high energy density, stable performance, and long-lasting power for solar systems, RVs, and off-grid applications.

• Upgraded Built-in 100A BMS

This 12V 100Ah LiFePO4 battery features an upgraded 100A BMS that protects against over-charging, over-discharging, over-current, and short circuits, ensuring safe and reliable operation even in low-temperature environments.

• Smaller than Standard Group 24 Size

Measuring only 9.01 × 8.38 × 5.66 inches, this compact 12V 100Ah LiFePO4 battery fits standard Group 24 battery boxes. It is compatible with most vehicles and equipment, making it an easy drop-in replacement for AGM, lead-acid, and SLA batteries with no maintenance or complex wiring required.

• Supports 4S4P Expansion

Easily expand from 1.28kWh to 20.48kWh by connecting up to sixteen identical 12V 100Ah Group 24 batteries in a 4P4S configuration. Build a system up to 51.2V 400Ah (20.48kWh) to meet higher energy needs for RV, home backup, marine, or off-grid power systems.

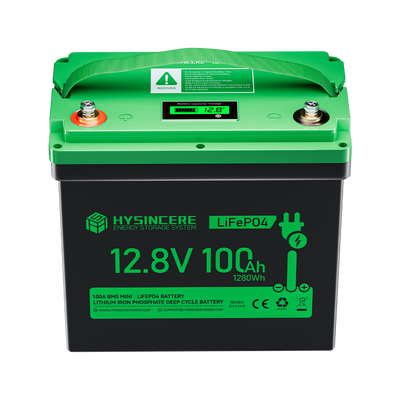

• LED Display Battery Monitor

The integrated LED display shows real-time voltage and capacity percentage. For accurate readings, allow the LiFePO4 battery to rest for about 30 minutes after charging due to its chemical characteristics.

$159.99 USD

$159.99 USD ~~$199.99 USD~~

Pack

1 Pack 2 Pack 3 Pack 4 Pack

Free Shipping
5 Years Warranty
Secure Payment

12V 100Ah Mini LiFePO4 Battery User Manual

Hysincere Power 12V 100Ah Group 24 LiFePO4 Battery

$159.99 USD

Hysincere 12V 100Ah Mini LiFePO4 Battery

Experience the next generation of energy storage. Our Mini series offers a smaller footprint without compromising on capacity, making it the perfect energy solution for RVs, campers, and tight-space installations.

Advanced Smart BMS with 5 Comprehensive Protections

Safety is our priority. The integrated Battery Management System (BMS) ensures peak performance while protecting against over-charge, over-discharge, over-current, short-circuits, and over-temperature.

Internal Smart BMS protection system for lithium battery safety

Grade A Cells for Deep Cycles

Built with premium Grade A LiFePO4 cells, our battery delivers exceptional longevity. Enjoy 4,000+ cycles at 100% DOD and up to 15,000 cycles at 60% DOD for over 10 years of reliable use.

Grade A LiFePO4 cells deep cycle performance 4000 to 15000 cycles

Better Than AGM: Lighter and Longer Lasting

Compared with typical AGM batteries this LiFePO4 unit is lighter, smaller and provides more usable capacity and far more cycles.

LiFePO4 vs Lead-acid battery weight and energy density comparison

Power Your Adventure with Reliable Energy

Replace your old lead-acid setup with a versatile lithium solution. Perfect for overlanding, camping, and off-grid explorations where dependable power is a must.

Portable lithium battery powering off-grid camping adventure

Superior Power for Modern RV Appliances

From refrigerators to microwaves and lighting, our high-discharge lithium batteries provide stable voltage to keep all your mobile home appliances running smoothly.

Integrated lithium power system for RV appliances and electronics

Scalable Energy Storage for Home & Off-Grid Solar

Build your own energy bank. Our batteries support series and parallel connections (up to 4S4P), allowing you to customize power for residential backup or large solar arrays.

Off-grid solar energy recycling system with stacked 12V 100Ah batteries

The Ideal Choice for All RV Classes

Whether it's a Truck Camper, Travel Trailer, Classic Motorhome, or Fifth Wheel, our 12V 100Ah battery is engineered for seamless integration and top-tier performance.

Versatile lithium battery for various RV types including campers and trailers

2026 Energy Solutions

Stay ahead with the latest in LiFePO4 technology. Perfectly optimized for Marine electronics, Trolling Motors, Home Energy Systems, and Solar Power Storage.

Charging lithium battery with dedicated LiFePO4 charger

Cell	LiFePO4 Battery
Warranty	5 Years
Nominal Voltage	12.8V
Nominal Capacity	100Ah
Usable Capacity	100Ah
Energy	1280Wh
Max. Output Power Rate	1280W
Battery Management System (BMS)	100A
Max. Continuous Charge/Discharge Current	100A
Charge Voltage	14.6V
Cycle Life	4000 cycles at 100% DOD 6000 cycles at 80% DOD 15,000 cycles at 60% DOD
Recommend Charging Current	20A (Within 0.2C)
Max. Discharge Current (5 Seconds)	200A
Dimension	L22.9 × W14.4 × H21.3 cm
Weight	8.95kg/19.73lb
Battery Pack Case	ABS
Temperature Range	Charge: 0℃–45℃ Discharge: -20℃–60℃ Storage: 0℃–40℃ (Best storage: 15℃–25℃, dry)
Terminal Size	M6 × 1mm Metric Thread
Post Bolts	M6 × 1mm Metric Thread × 12mm Bolt Length

Learn How Our 12V 100Ah Mini Battery Was Built To Power Your Journey

Across the three YouTube videos reviewing the Hysincere Power 12V 100Ah LiFePO4 lithium battery, reviewers consistently highlight real-world performance, build quality, and practical value of this compact lithium battery design. One video focuses on hands-on testing and teardown to show what’s inside the battery and how its construction supports safe, stable output — including the built-in LED voltage/capacity display that helps users easily monitor state of charge. Another video provides an unboxing and initial impressions, showing the compact, lightweight Group 24 format and how it fits standard battery spaces, as well as pointing out installation ease and general usability for RV, off-grid, and solar applications. Multiple reviewers also emphasize that despite being a budget-friendly 100Ah LiFePO4 option, the battery still delivers consistent performance and cycle durability expected from LiFePO4 cells, making it a practical choice for campers, van life, and backup power users who want reliable deep-cycle energy without the weight and maintenance of lead-acid alternatives.

FAQs

These suggestions may help you better understand our batteries, ensuring a better experience during use.

What does the integrated display show?

The built-in LED screen provides voltage and capacity percentage for quick status checks. For accurate readings, allow the battery to rest 30 minutes after charging before checking the display.

How can I expand capacity or voltage?

Connect up to four batteries in series (4S) for higher voltage or in parallel (4P) for greater capacity—combining up to 16 units (4S4P) to achieve 51.2 V or 20 480 Wh.

Which charger is recommended?

Use a dedicated LiFePO4 charger set to 14.6 V and 20 A. This ensures fast, efficient charging and maximizes the battery’s lifespan.

What protection features does the BMS provide?

The robust 100 A BMS guards against over-charge, over-discharge, over-voltage, over-current, short circuits, and overloads for safe, reliable operation.

What’s the expected lifespan and warranty?

With up to 4000 cycles at 100% depth-of-discharge (and even more at lower DOD), this battery can last 10 years. It’s backed by a 5-year manufacturer’s warranty.
