Specs

Cell Type:

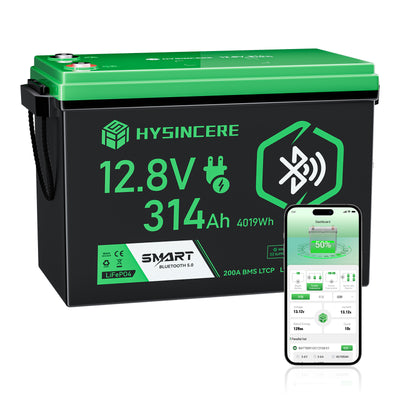

LifePO4 Battery
Warranty:
5 Years
Cycle Life:
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage:
12.8v
Rated Capacity:
314Ah
Energy:
4019Wh

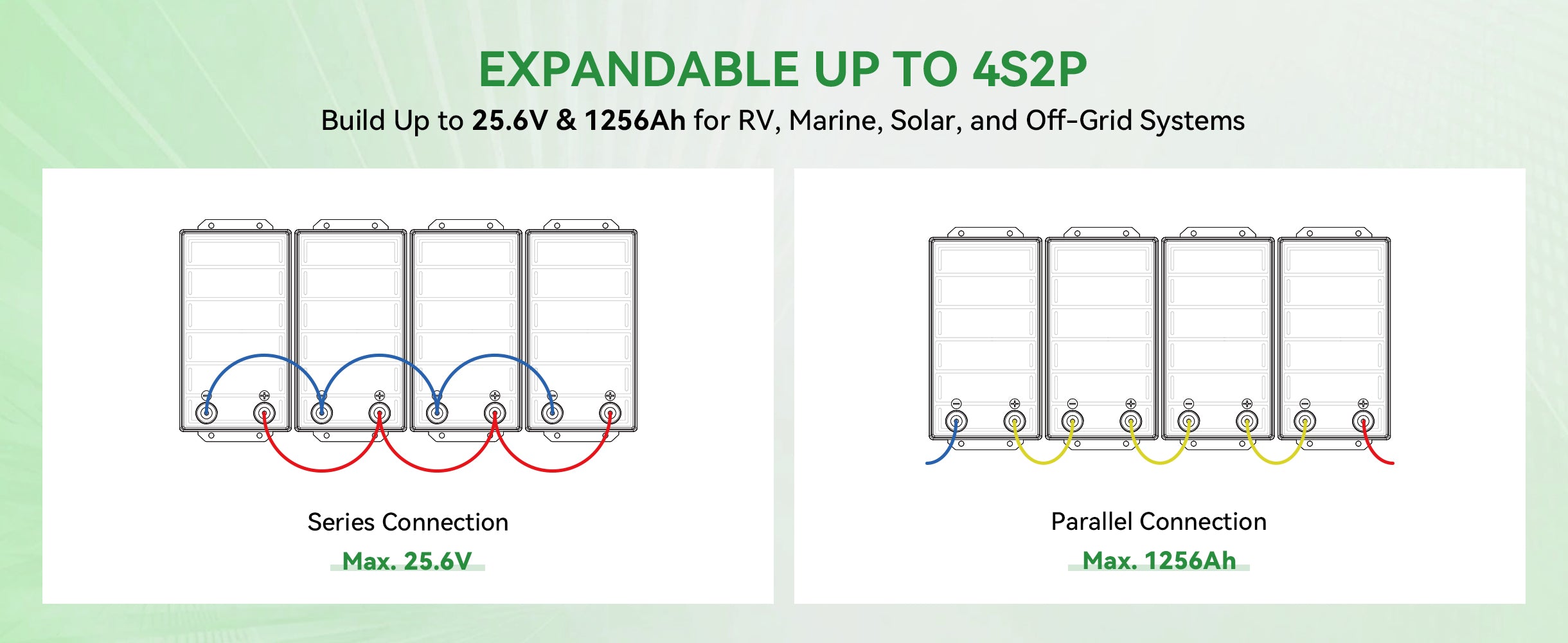

Max. Expansion (Parallel & Series):
4P4S
Certifications:
FCC,CE,RoHS,UN38.3 certified. Complies with the UL1973 standard

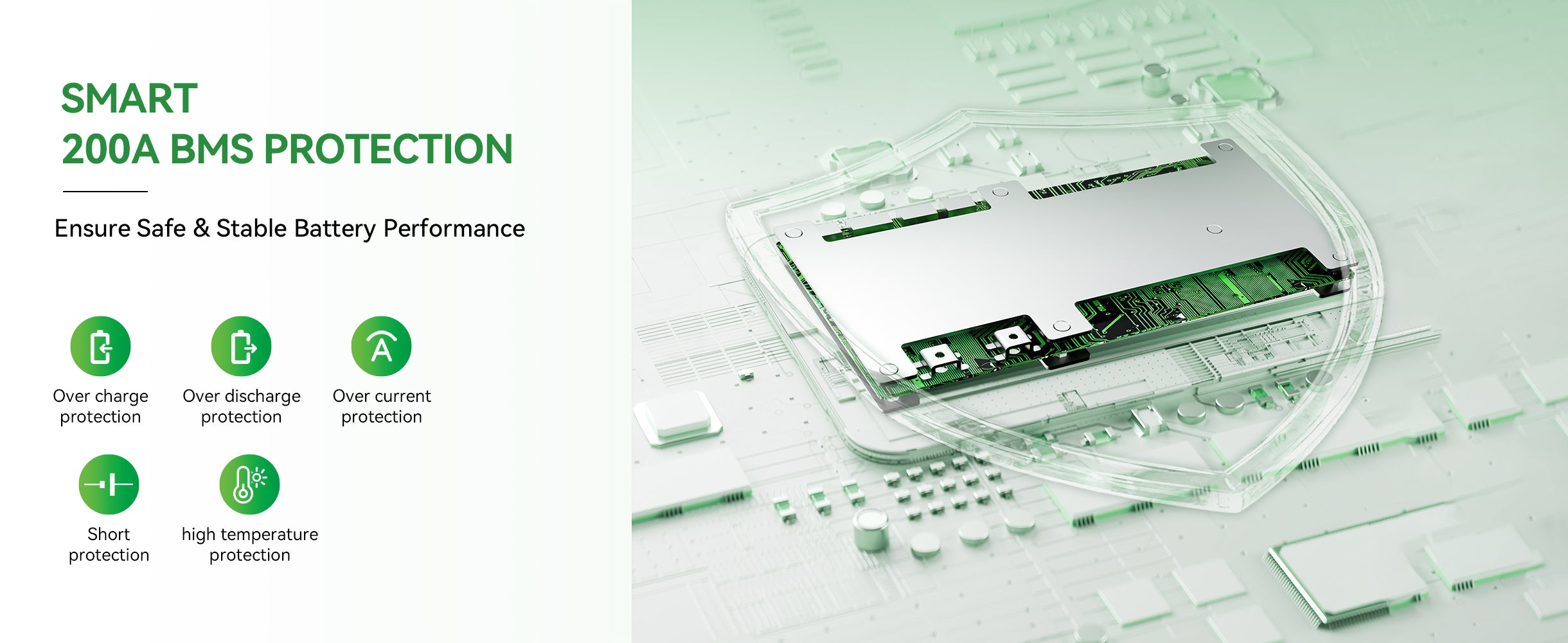

BMS:
200A
Max. Continuous Output Power:
2560W
Max.Continuous Charge/Discharge Current
200A
Max. Discharge Current (5 Seconds)
350A
Charge Method:
CC/CV
Charge Voltage:
14.6v
Recommend Charge Current:
62.8A (Within 0.2C)
Charge Temperature:
0°C ~ 55°C
Discharge Temperature:
-20°C ~ 60°C
Storage Temperature:
0°C ~ 40°C
Terminals:
 M8*1mm*2
Weight Approx.:
28Kg
Size:
L38.4*W19.4*H24.8cm
Housing Material:
ABS
Protection Class:
IP65
